Step inside the CCL 150
Get a detailed tour of the CCL 150 model from popular paramedic Sam Boyer-Groff. He does a fantastic job highlighting the features that matter most from a paramedic’s point of view.
CCL 150
Proven Crestline Type I ambulance available in Canada
The CCL 150 Type I is the compact workhorse of our ambulance lineup. Now available in Canada, it delivers the durability, value, and performance Crestline is known for in a compact, straightforward package. Built on a truck chassis, the CCL 150 is fully equipped with everything paramedics need for their missions, whether in rural communities or busy urban areas.
Designed with a straightforward, performance-focused layout to support paramedics, the CCL 150 combines practicality and ergonomics with all the essential features that keep crews comfortable and effective. Its design ensures everything is within easy reach, allowing paramedics to move confidently through the unit with every tool and supply in its place, ready to support patients onboard.
No frills. No extras. Just the proven Crestline quality and capability that gets the job done every call and every time.
*MOH certification in progress (Spring 2026)
Ambulance Features and Options
Overview
Care Module
Front Cab
Electrical
Emergency System
Chassis & Suspension
Overview
Standard
- 72″ interior headroom
- Aluminum extruded body construction
- Ergonomic working space with flexible storage
- Multiplex Electrical System with touchscreen control panels
- Rear-facing seat with 4-point seatbelt for enhanced paramedic safety
- LED lighting for better visibility during patient care
- Superior HVAC system and with dual 120V/12V functionality is an option
- Optional back-up camera with monitor in the cab
- Remote diagnostic capabilities for reduced downtime
- Stryker wheel guide
- Powder-coated white module and durable anti-slip flooring
- Backed by Crestline Lifetime Paint & Structural Warranty
Optional
- Red powder-coated exterior to match fleet branding
- Integrated Power-LOAD or Performance-LOAD systems
- Independent HVAC system with dedicated A/C compressorCustom upholstery color options
- Marketing wraps and vinyl clings available
Care Module
Standard
- Rear-facing EVS seamless vinyl seat with 4-point seat belt
- Two position squad bench with 4-point harness system (second patient transport compatible)
- Floor-mounted sharps and waste container (recessed)
- Four IV clip-style hangers (2 curbside, 2 streetside)
- Universal vertical holder for oxygen cylinder
- One oxygen outlet in Action Area
- One oxygen outlet on curbside wall
- Molded anti-slip flooring
- Overhead and under-counter storage cabinets with fixed sliding doors
- Dome lighting
Optional
- Child safety device or 4-point harness on rear-facing seat
- Technimount or universal monitor mounts in Action Area
- Additional IV hangers (recessed/flexible)
- Lumalier ADU UV disinfection light
- HEPA air filtration system
- Handheld or aerosol disinfection systems (CURIS, RDS 3110)
- Lockable drug cabinet with temperature control
- Additional oxygen or medical air outlets
- Dual tank oxygen or medical air storage
- Cot mount configurations: center, streetside
- Stryker Power-LOAD or Performance-LOAD fasteners
- CPR seat with 4-point harness
- Stainless steel countertop with lip
- Restocking frames for cabinets
- Rope LED
Front Cab
Standard
- 8 way power drivers seat
- Recessed cab into module (allows cab seat recline)
- Cab-to-module talk-through sliding window
- Narrow center console with USB charging ports
- Digital OEM voltmeter
- Patient status lights and door ajar indicators
- Control center with LED backlit pictograms
- Ram mount console
- Cab-mounted backup camera monitor
- Two-speaker siren system
- 100-watt siren amplifier with PA mic
Optional
- Large center console with docking station capability
- Floor-mounted consoles (strap or lid with cup holders)
- Additional USB charging ports
- Hospital-grade 120V GFCI outlets (various locations)
- Interior compartment camera
- High-visibility red/white reading lights on passenger side
- Additional auxiliary switches
Electrical
Standard
- Multiplex electrical system with toggle switches and LED pictograms
- Electrical Control Center (ECC) with protected aluminum panel
- One 12 VDC outlet in Action Area
- One 12 VDC outlet in lower ALS area
- One 120 VAC GFCI outlet with USB in Action Area
- One 120 VAC GFCI outlet in upper ALS area
- Shoreline inlet (120V/15A) with waterproof cover
- Shoreline power indicator light
- Four antenna ports with RG-58 prewiring
- Two OEM batteries
- Temperature control with automatic setting in Action Area
- Rear speaker volume control
Optional
- Additional third battery
- Auto-eject shoreline inlet (15A or 20A)
- Additional GFCI outlets (ALS area, bulkhead, curbside)
- Inverter/charger systems (Xantrex Freedom XC or prewire only)
- Multiplex diagnostic interface cable
Emergency System
Standard
- SSCOR suction systems
- Six LED dome lights with multi-intensity settings
- Round LED compartment lighting
- LED reading light above Action Area
- Patient status indicators (Red/Yellow/Green) at console and Action Area
Optional
- Lumalier UV disinfection light (also listed in Care Module)
- Back-up alarm override switch
- Additional LED rope lighting in compartments
- Driver intention indicator lights in rear digital clock
- Emergency light upgrades (Title 13, additional grille/rear/intersection lights)
Chassis & Suspension
- Option – LiquidSpring® Smart Suspension: Adaptative suspensions enabling kneeling capabilities and a smoother ride for patient and paramedic comfort
Gallery
Aluminum cabinets
Aluminum cabinets open front view

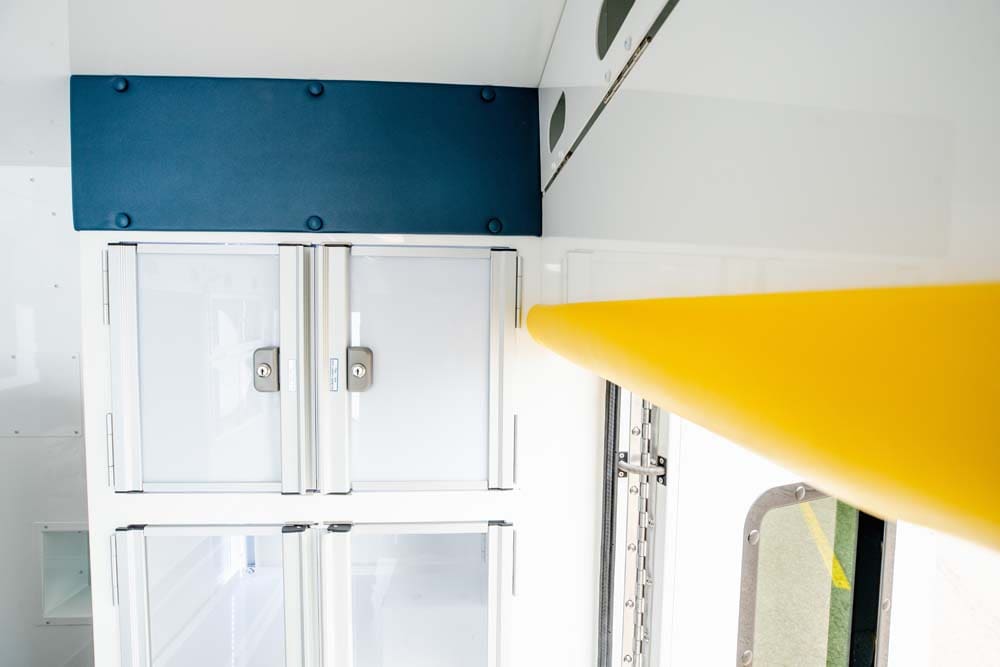

Drug locker

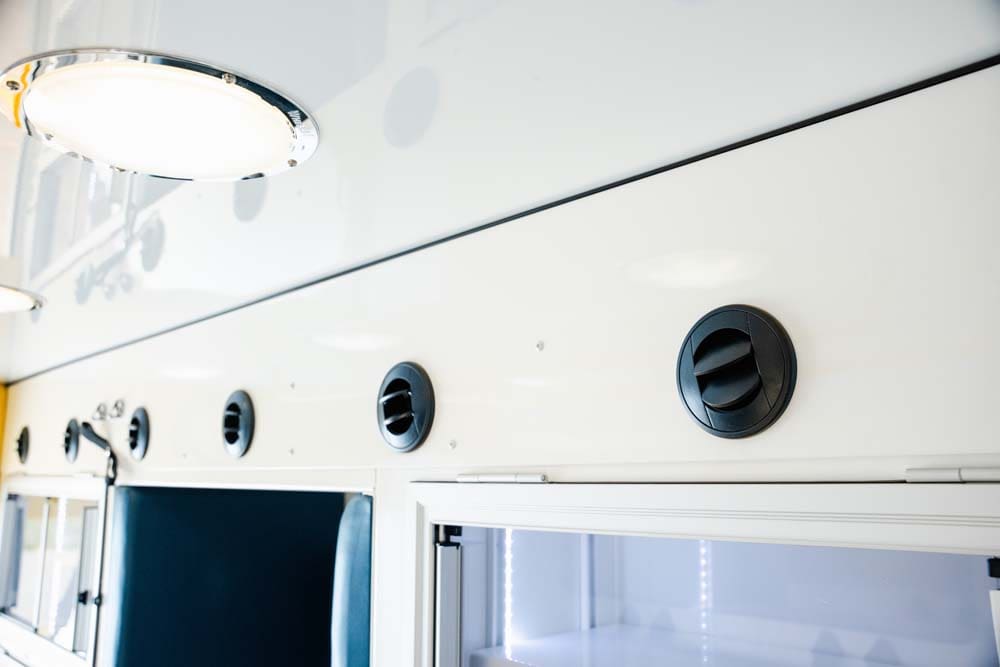

Climate Control Vents

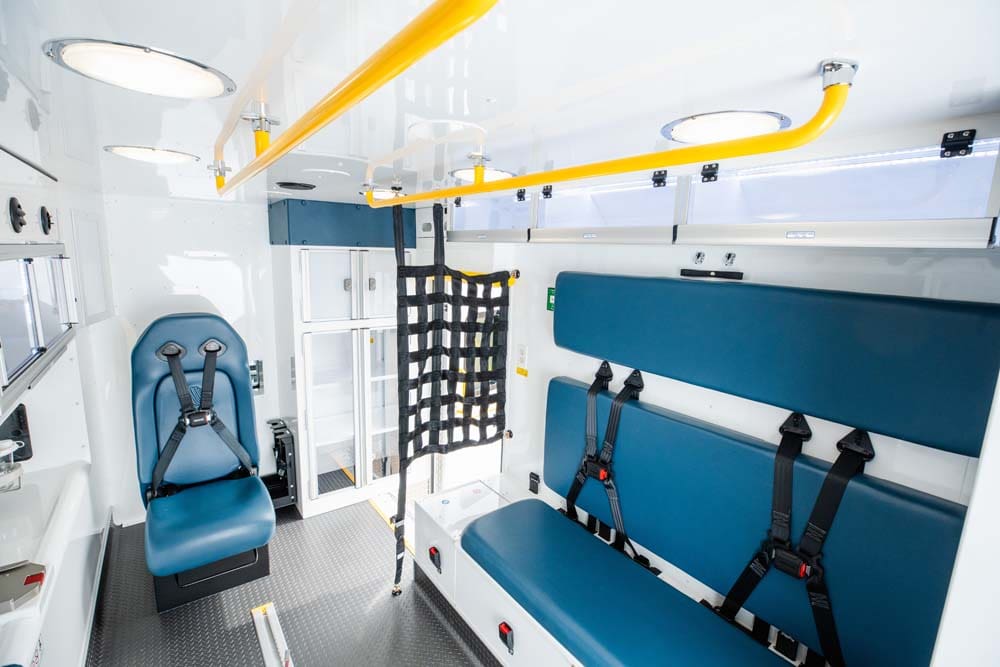

Rear Module Overview
Ambulance-type 1-canada-CCL150 -Action Area with Control Panel

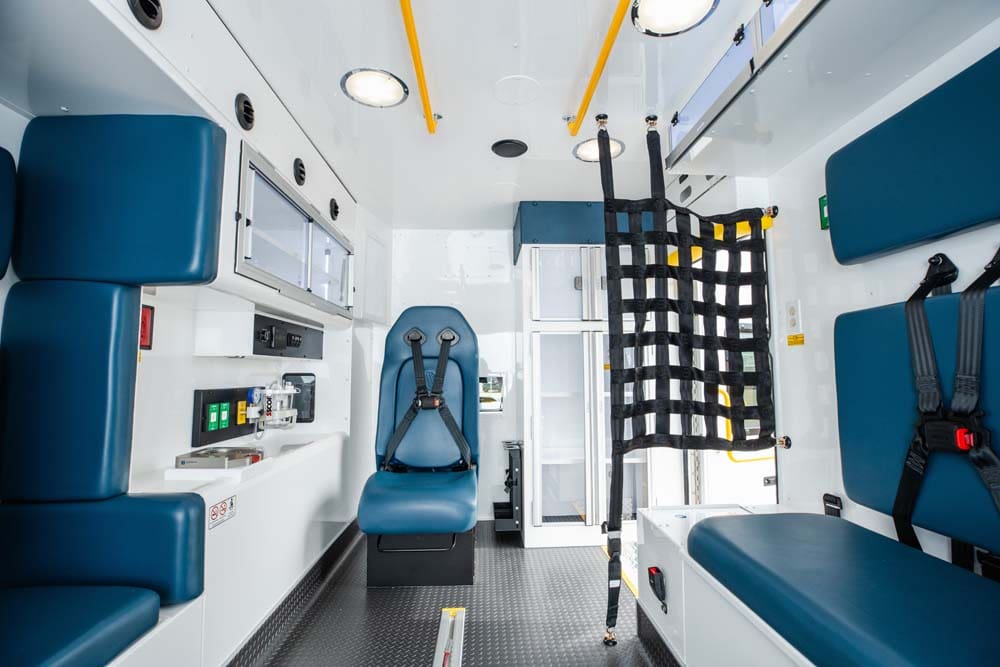

Interior View with Attendant Seat

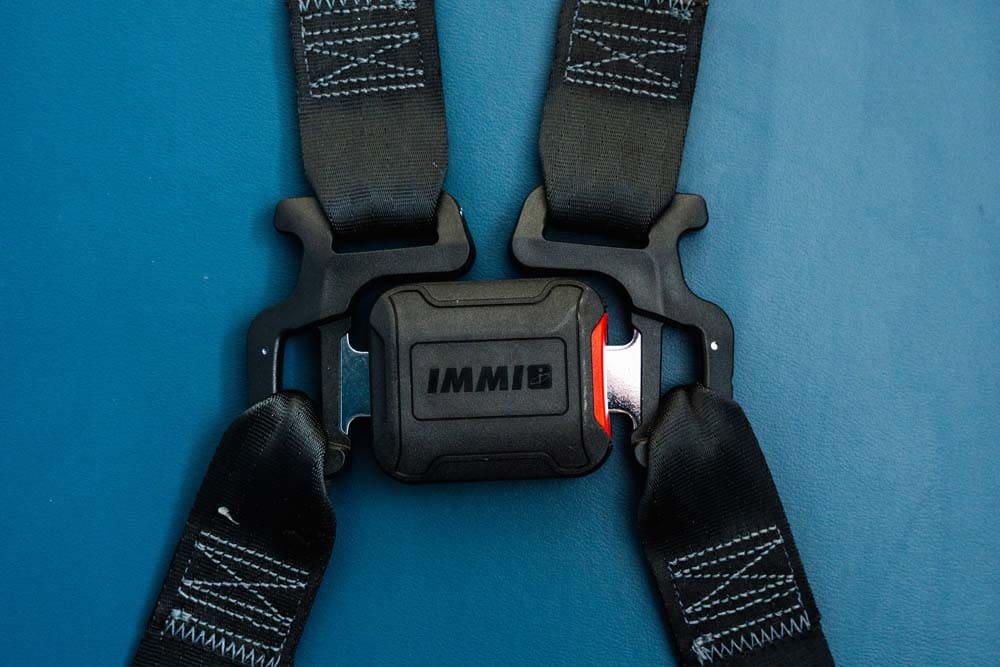

4-point harness
Aluminum cabinets open front view
Attendant Seat Area

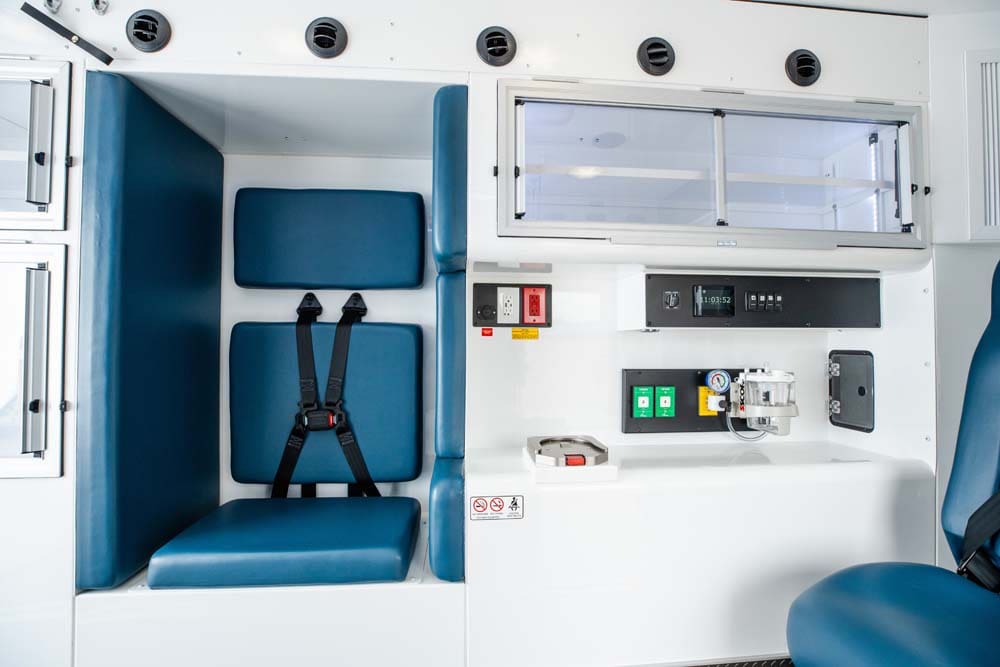

CPR seat

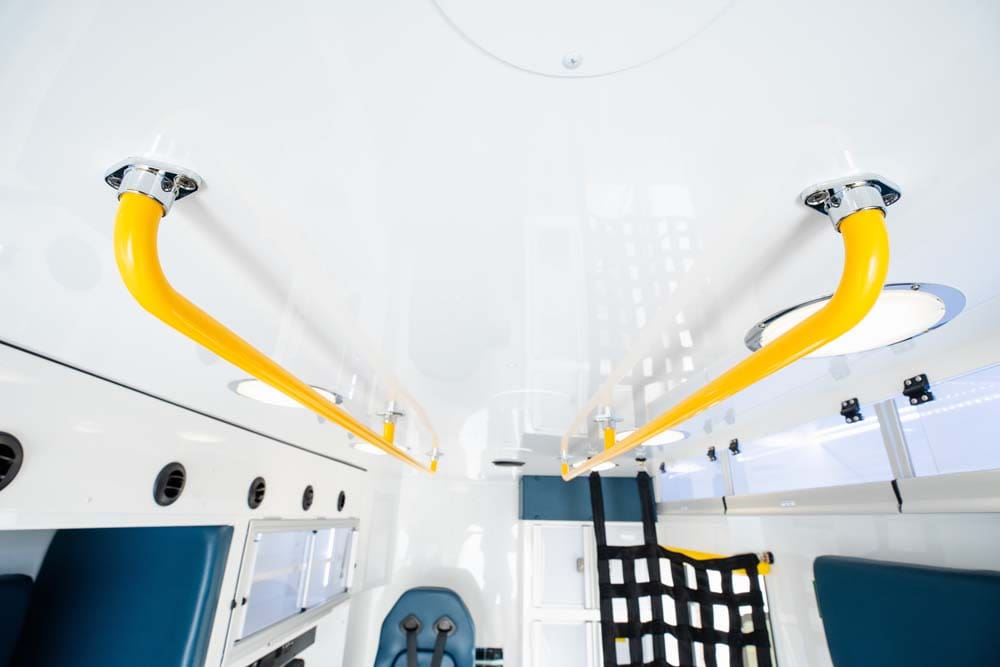

Grab rails

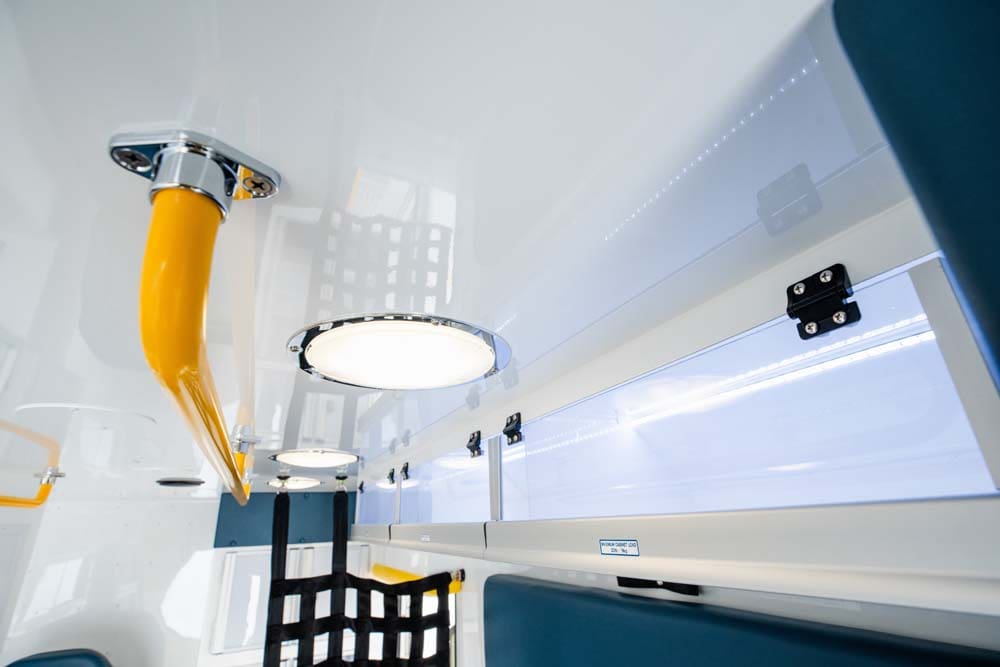

LED cot lights
Rear Module Overview
Side Entry Door Detail

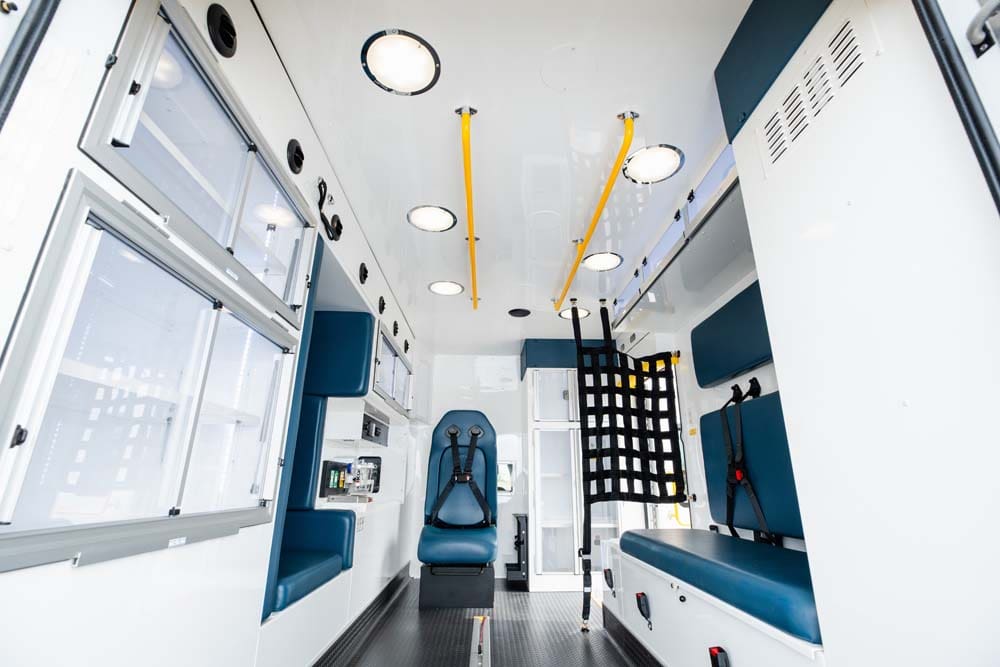

Ambulance-type 1-canada-CCL150-Soft-Touch Wall Finish

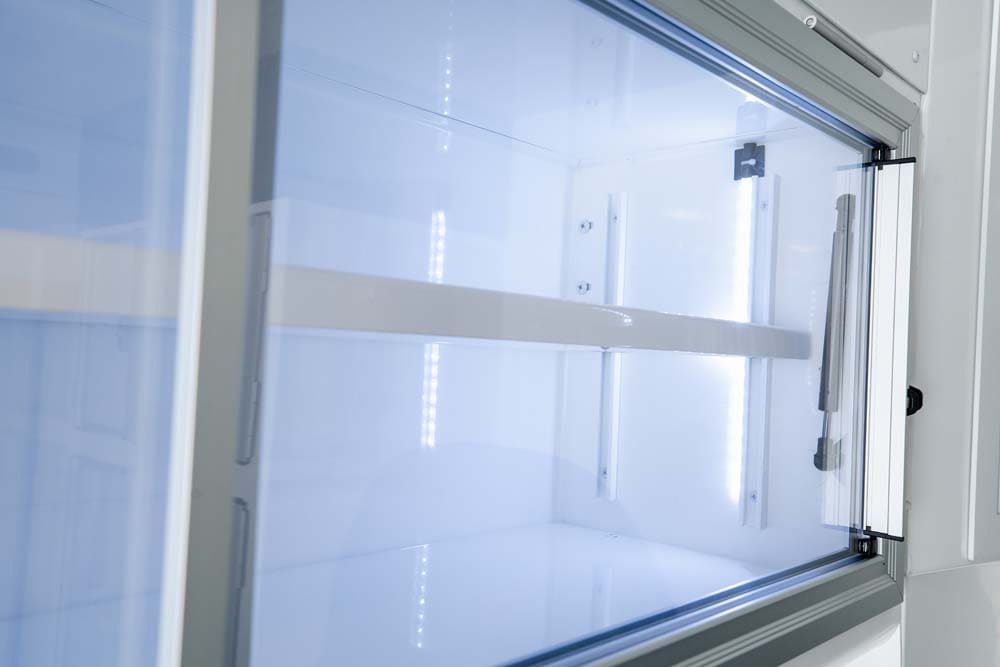

Storage Cabinet Close-Up

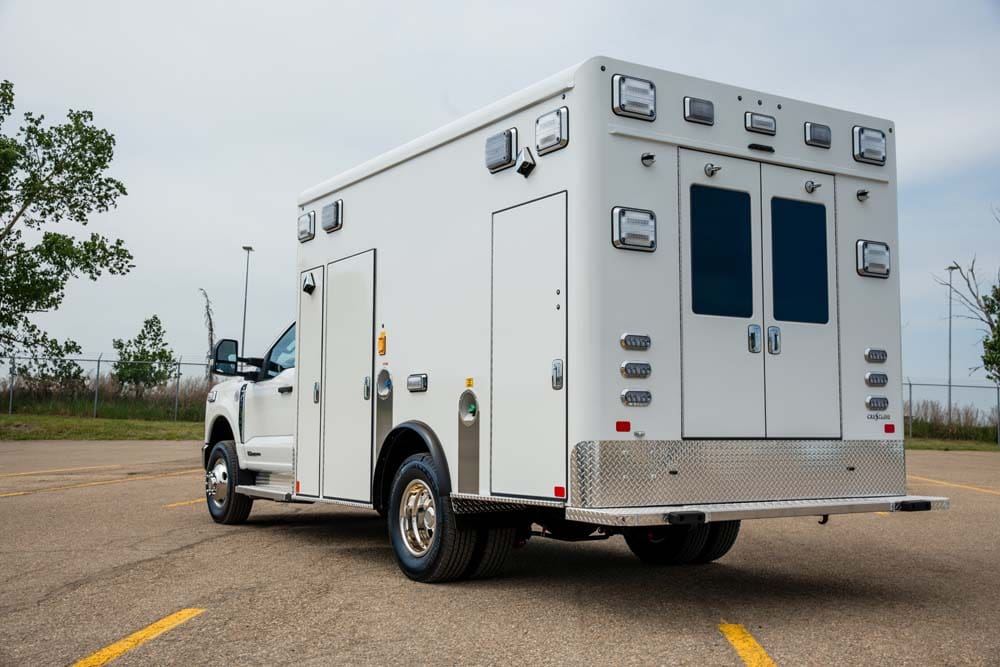

Roof Emergency Lighting
ALS cabinet

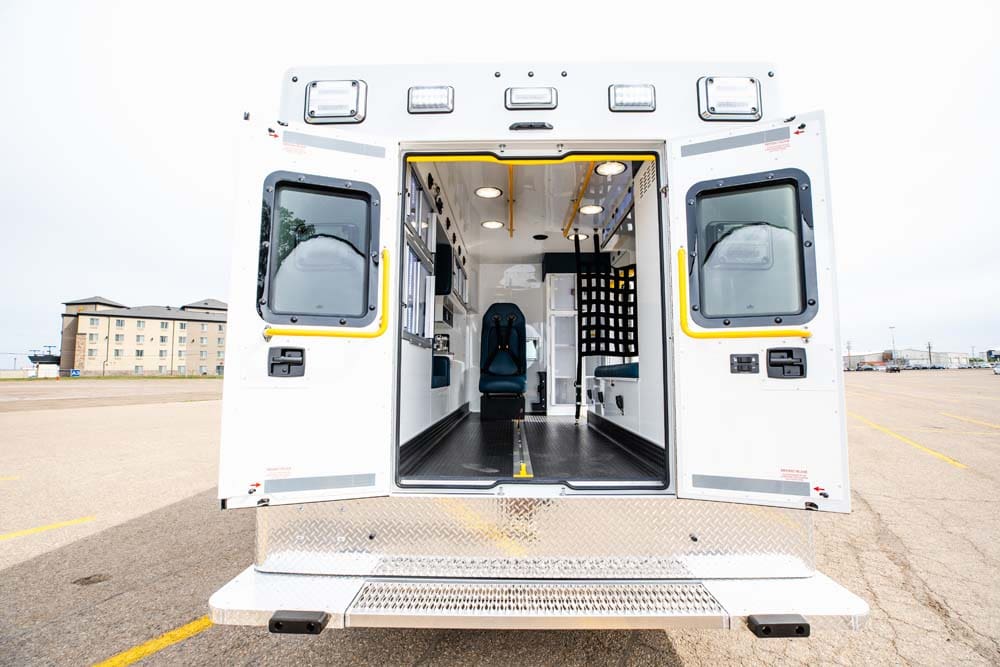

Equipment Loading Area
Exterior Finish and Branding

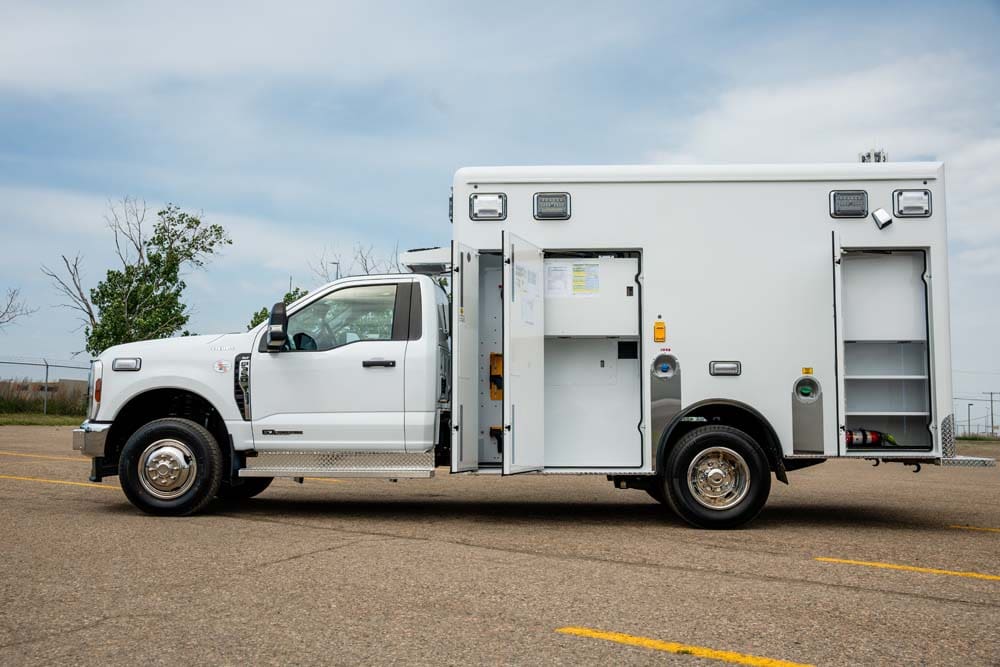

Exterior Compartment Access

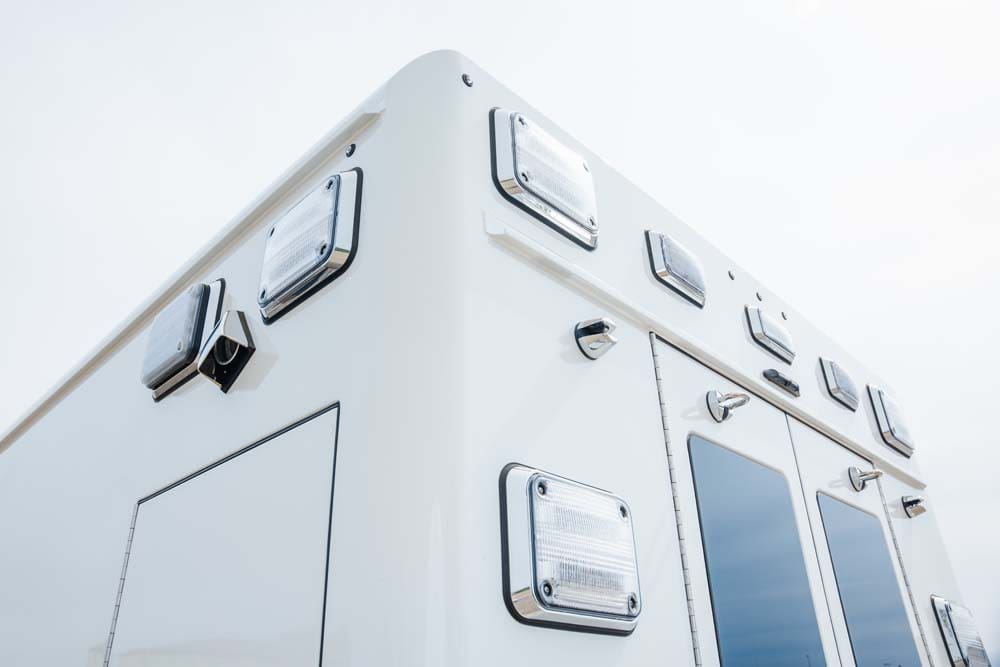

LED Scene Lighting

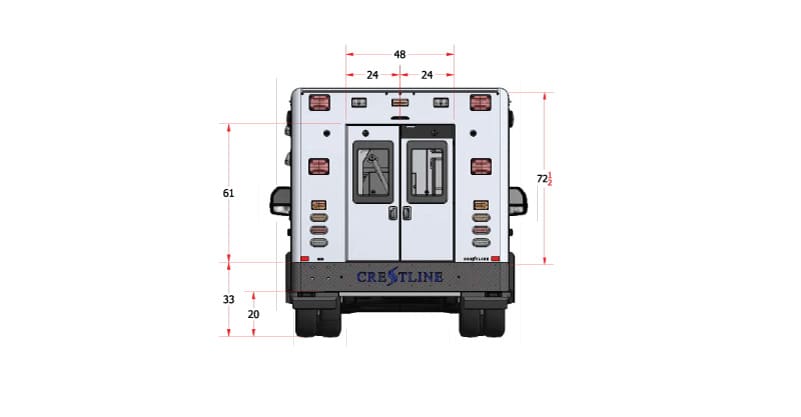

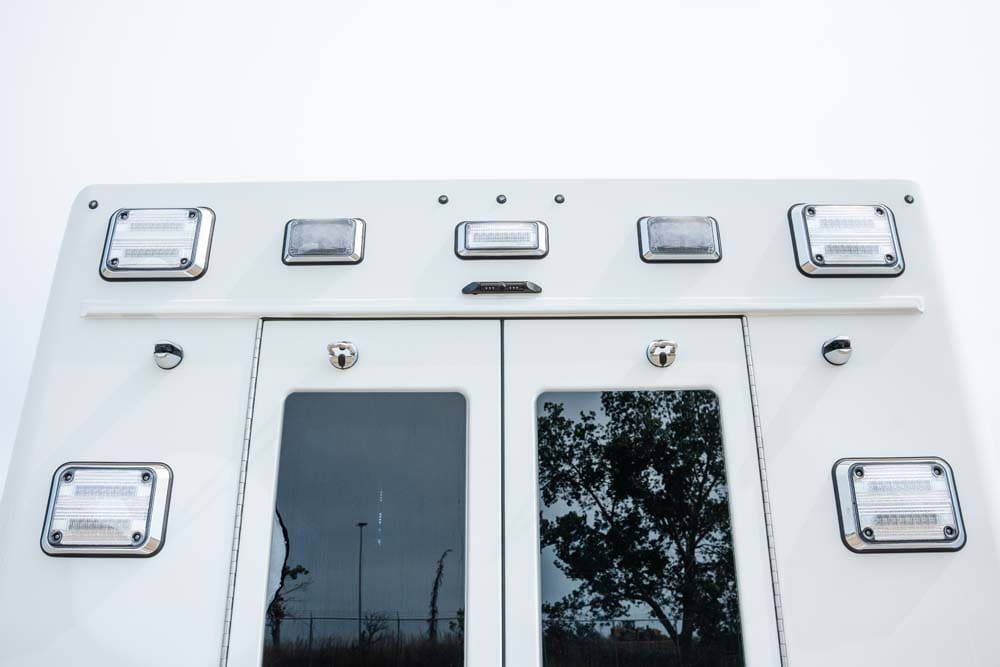

Rear view

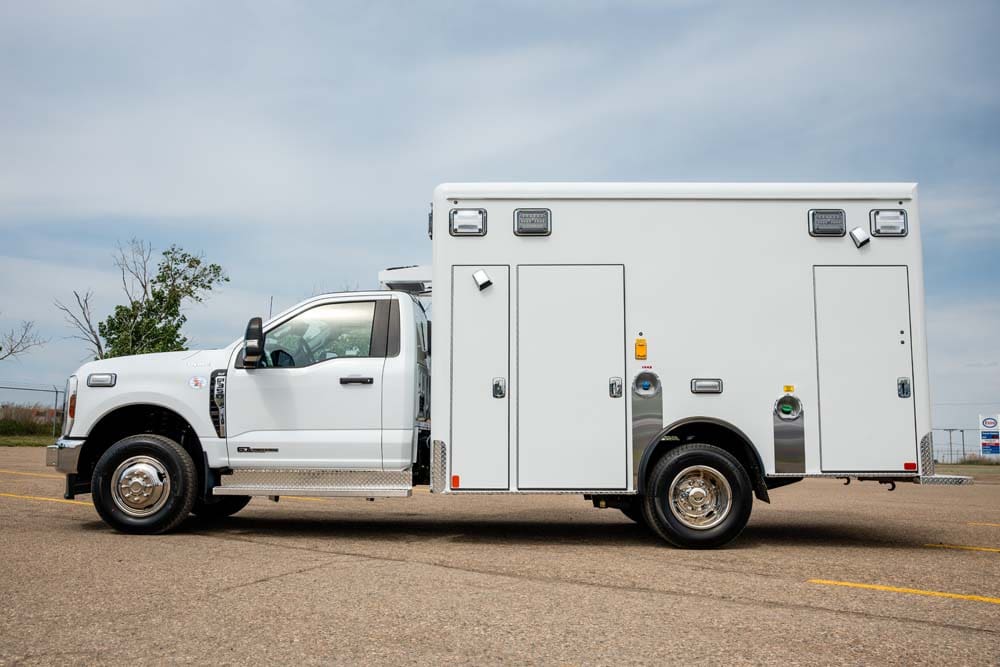

Driver-Side View with Compartments

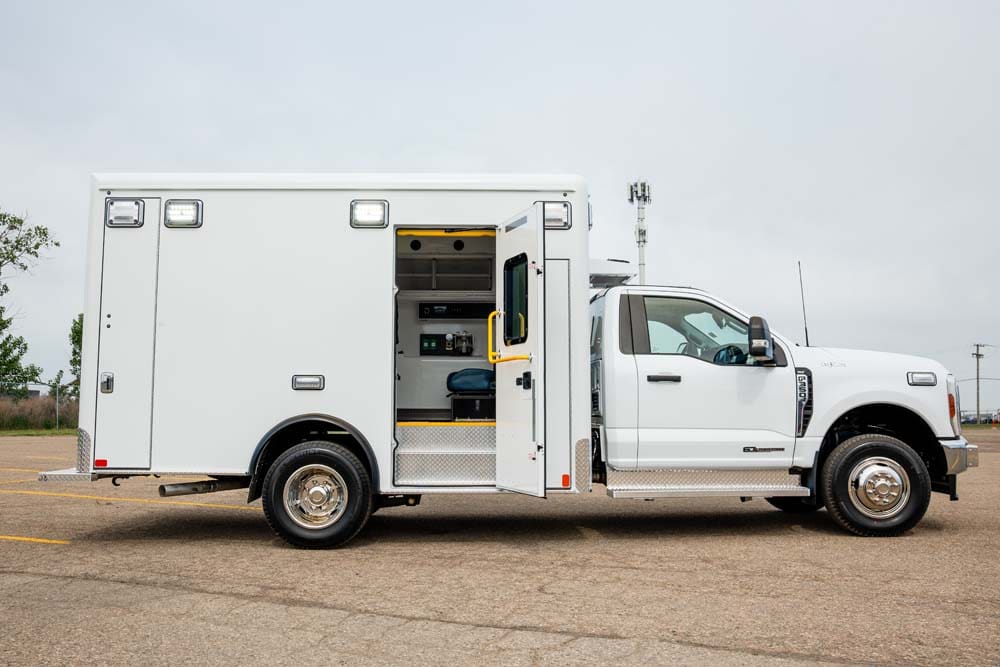

Passenger-Side Exterior View

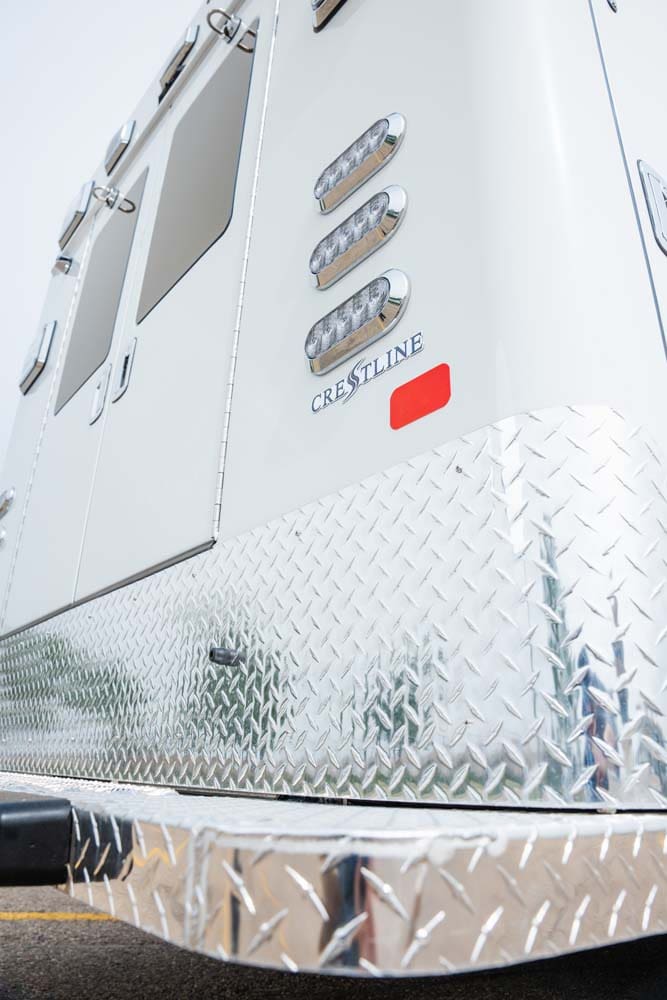

Rear Bumper and Step Platform
Roof Emergency Lighting

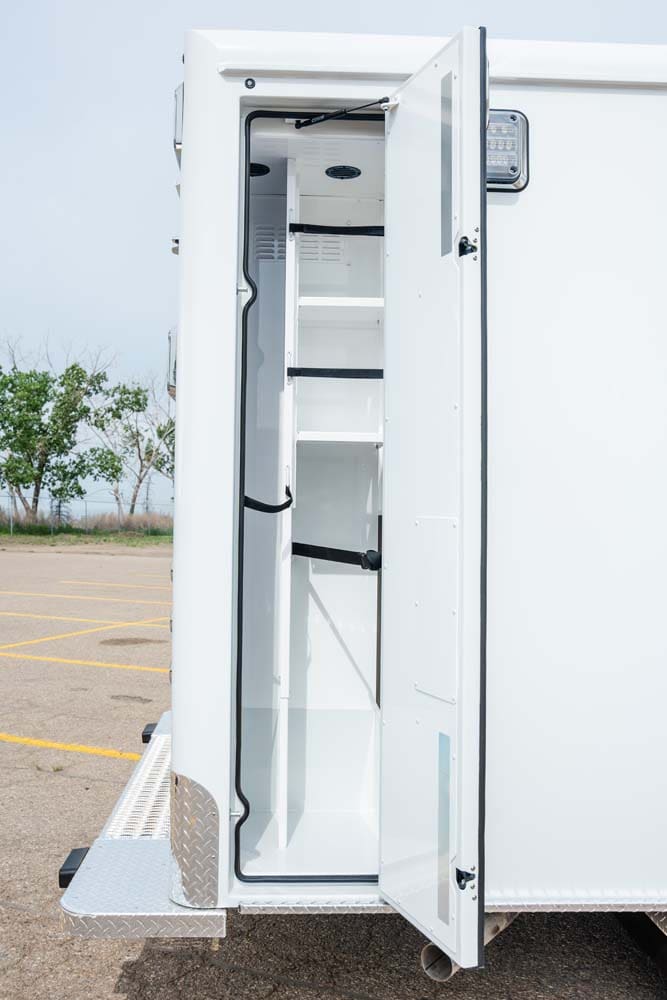

Spine board compartment/door

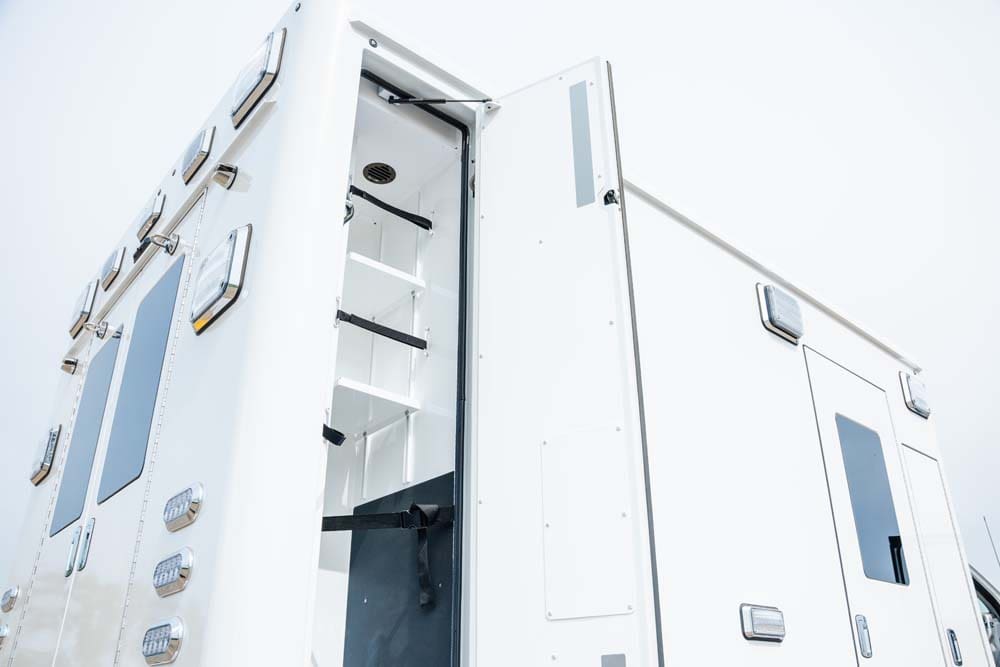

Spine board compartment/door

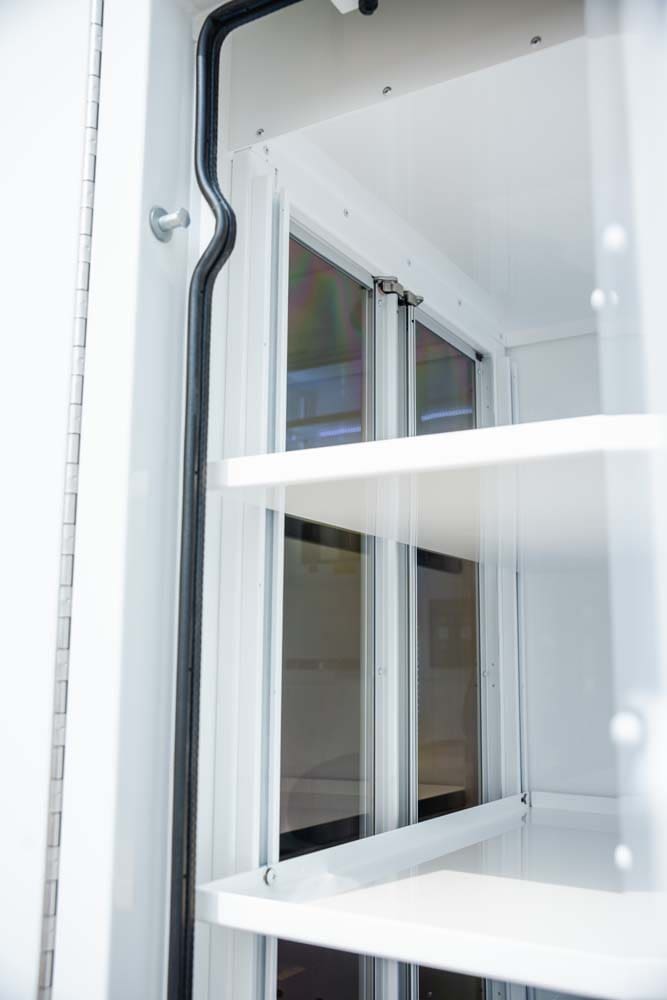

Storage shelves
ALS cabinet
Rear Bumper and Step Platform

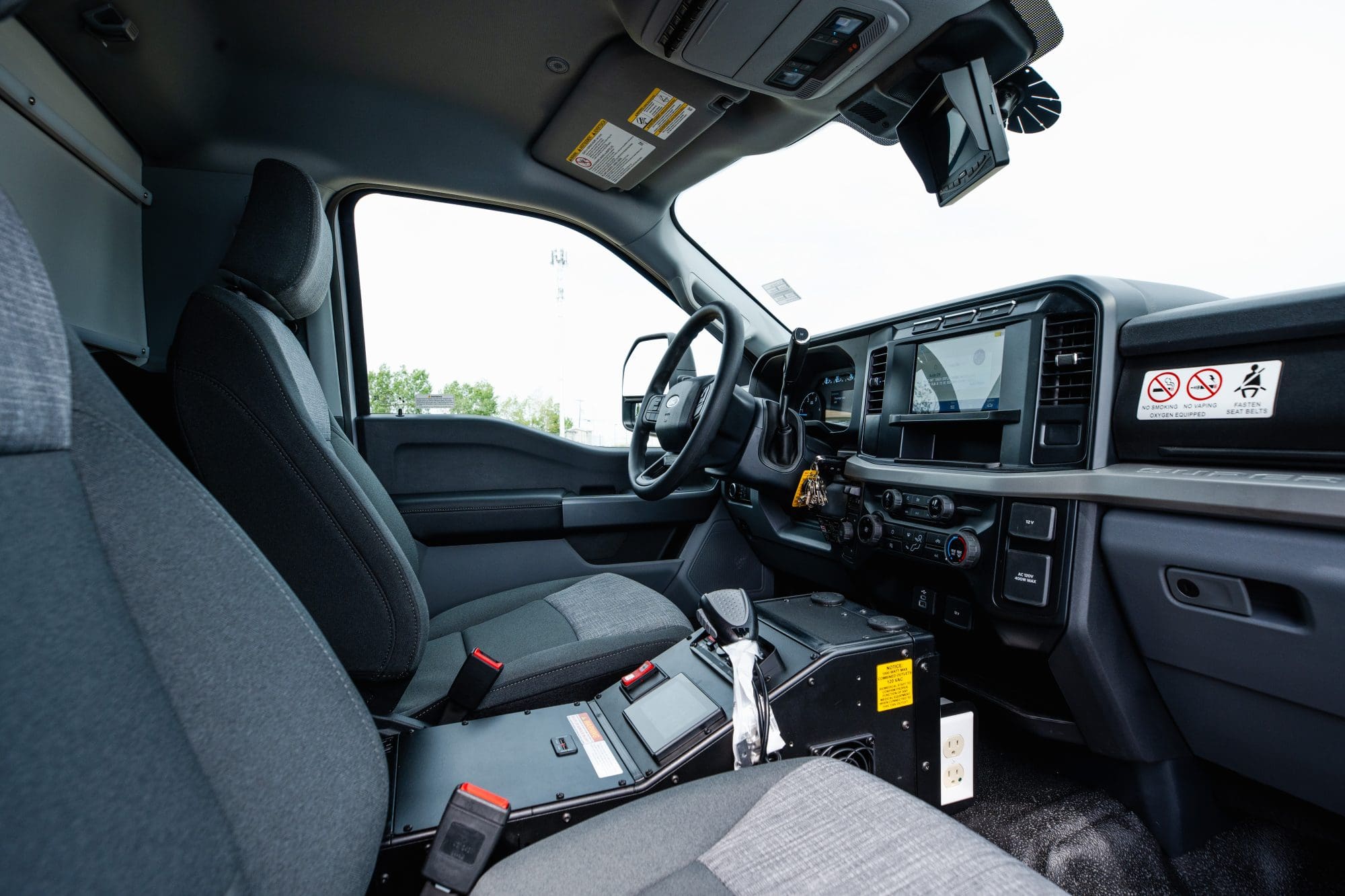

Front cab
Module talk through
Ceiling mounted reading lighting

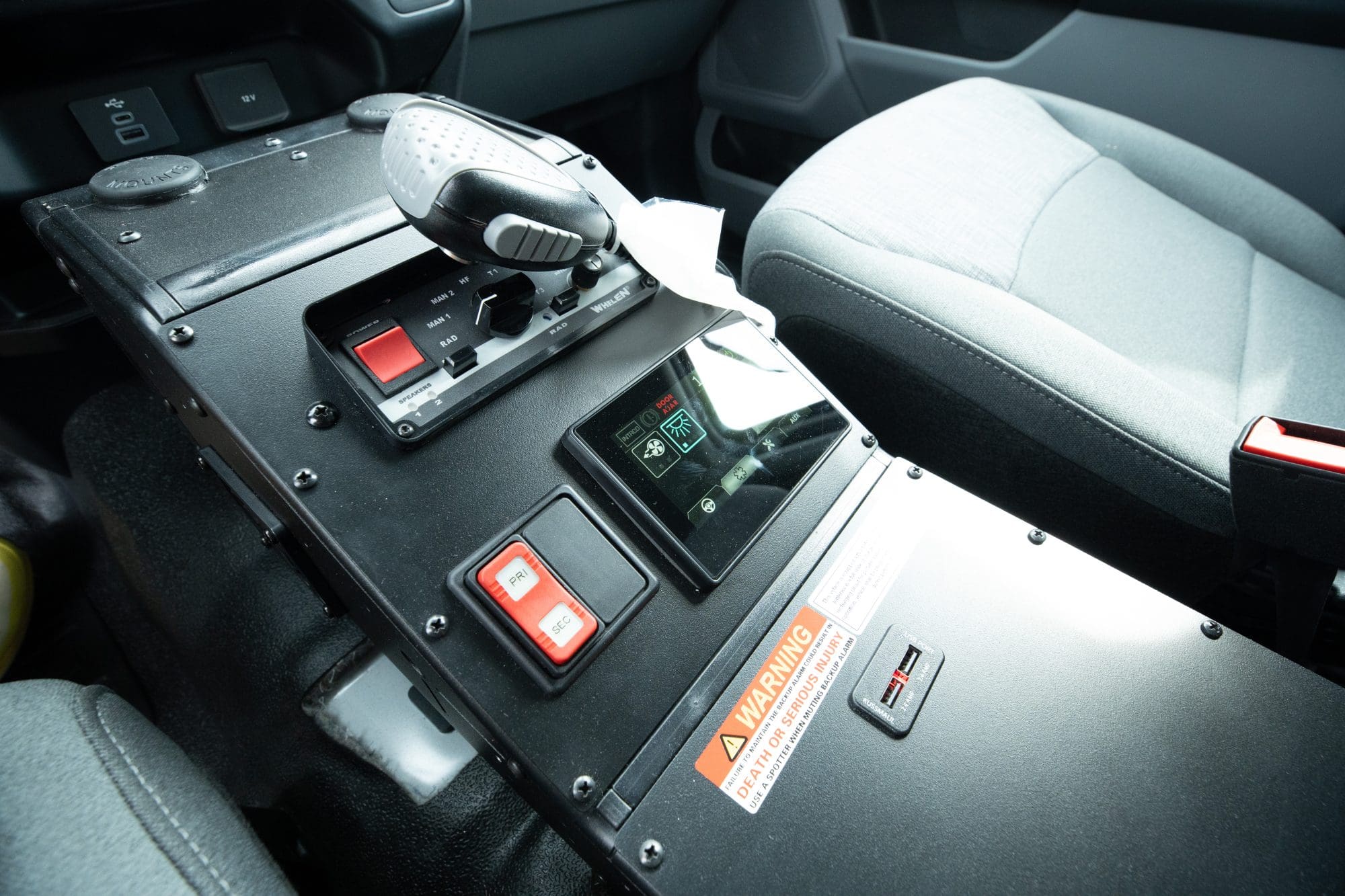

Center console

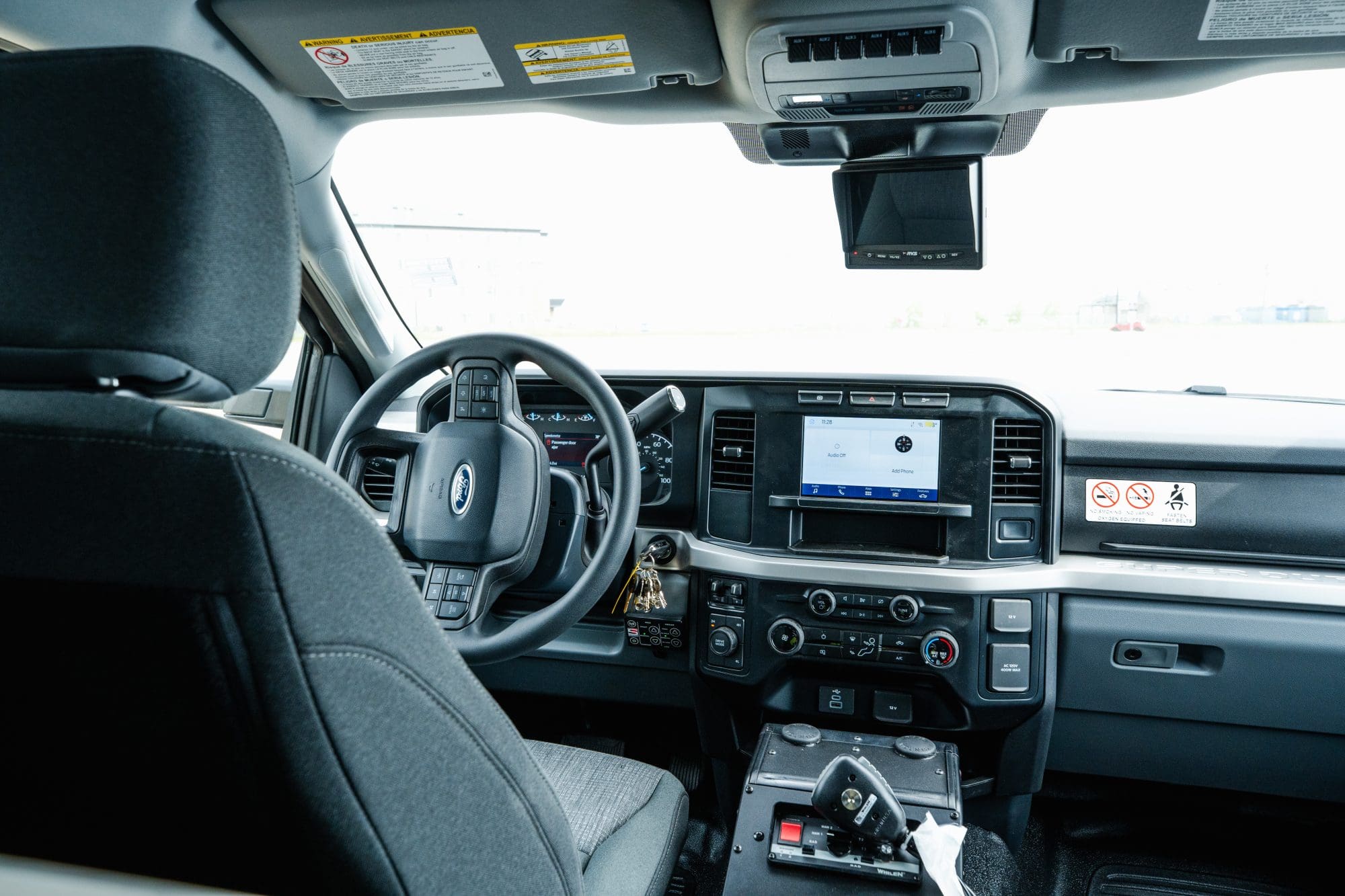

Driver Cockpit

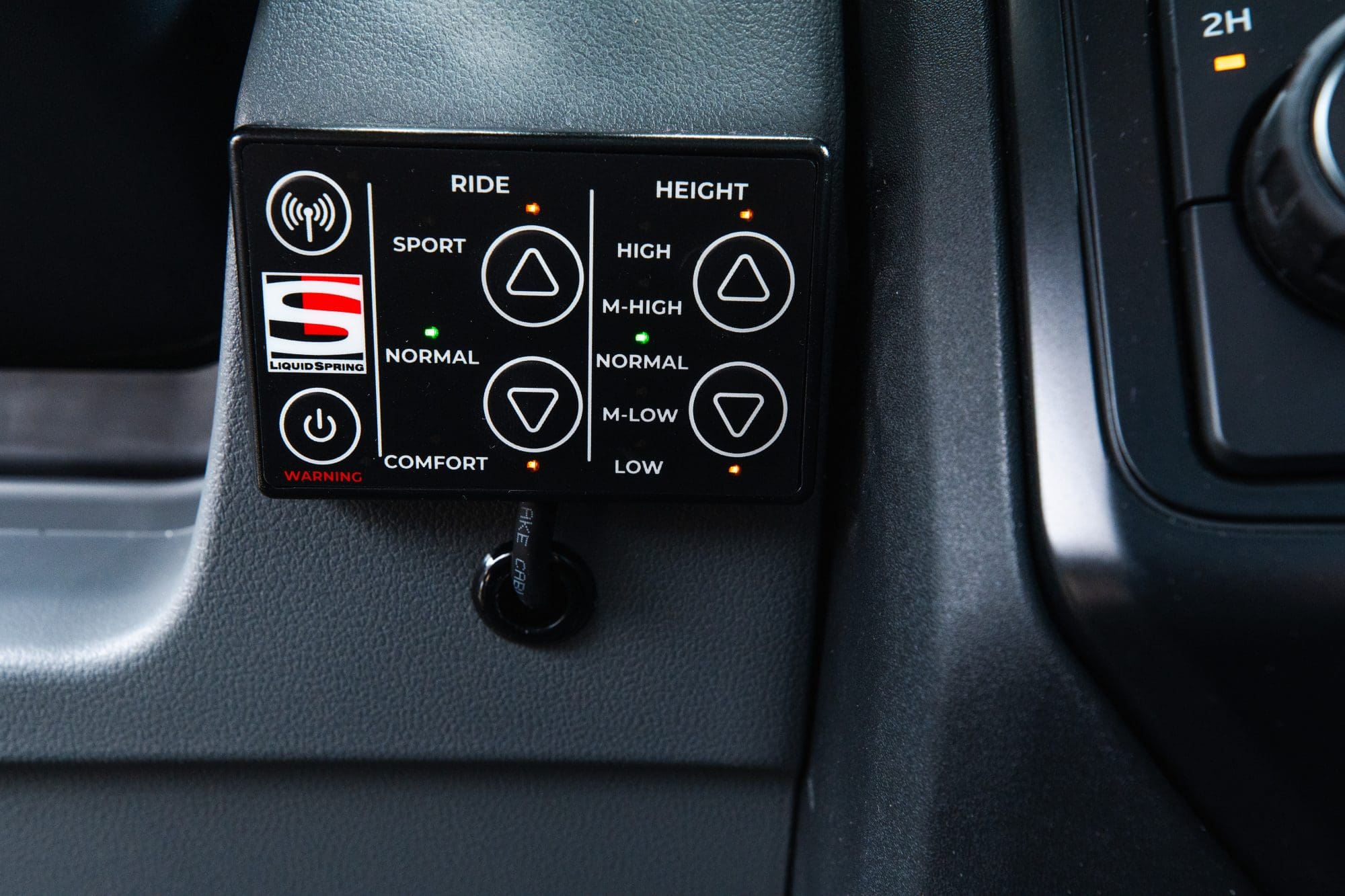

Liquid Spring®

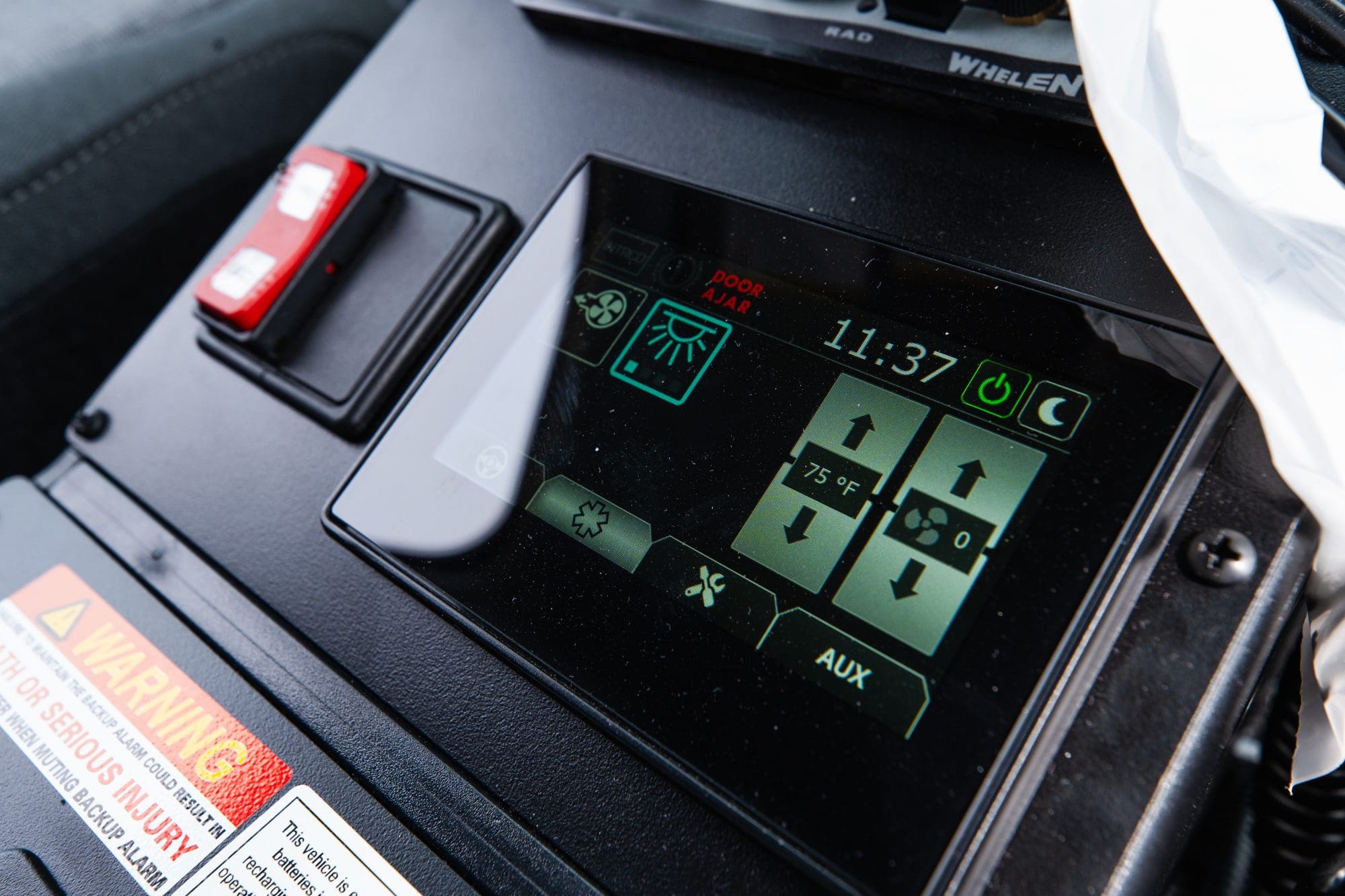

MMC touch screen

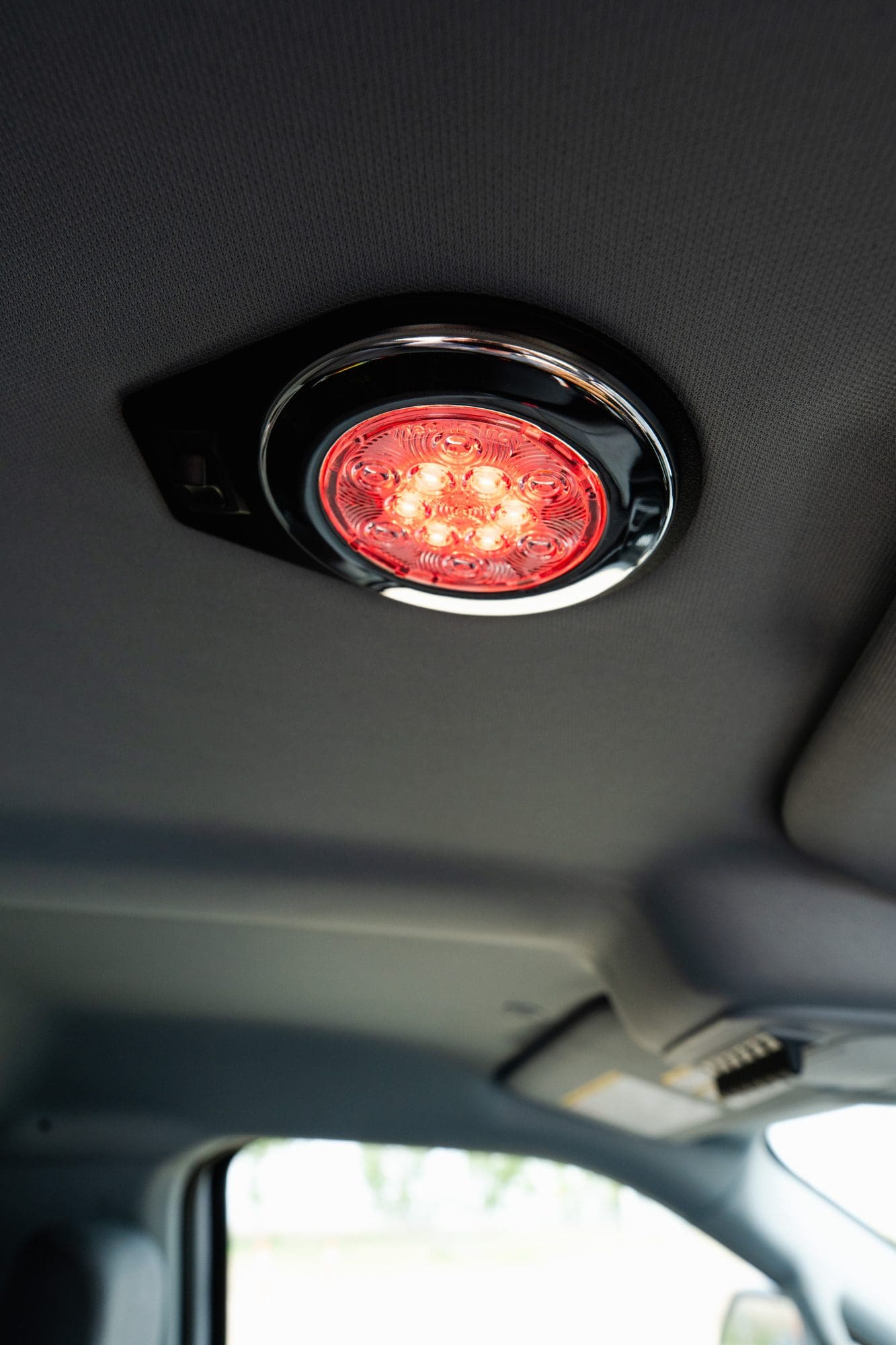

Red reading light function

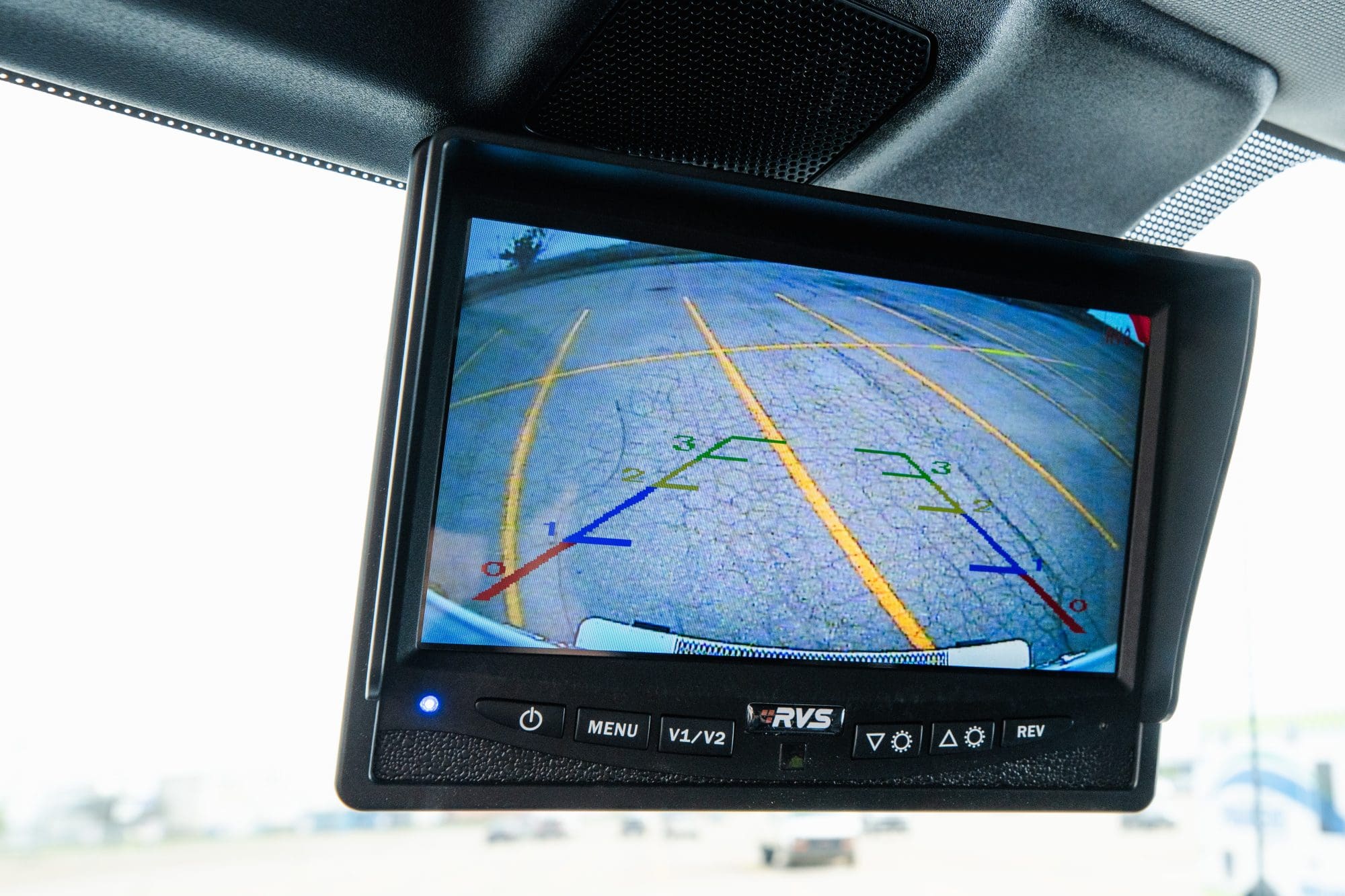

Reverse monitor

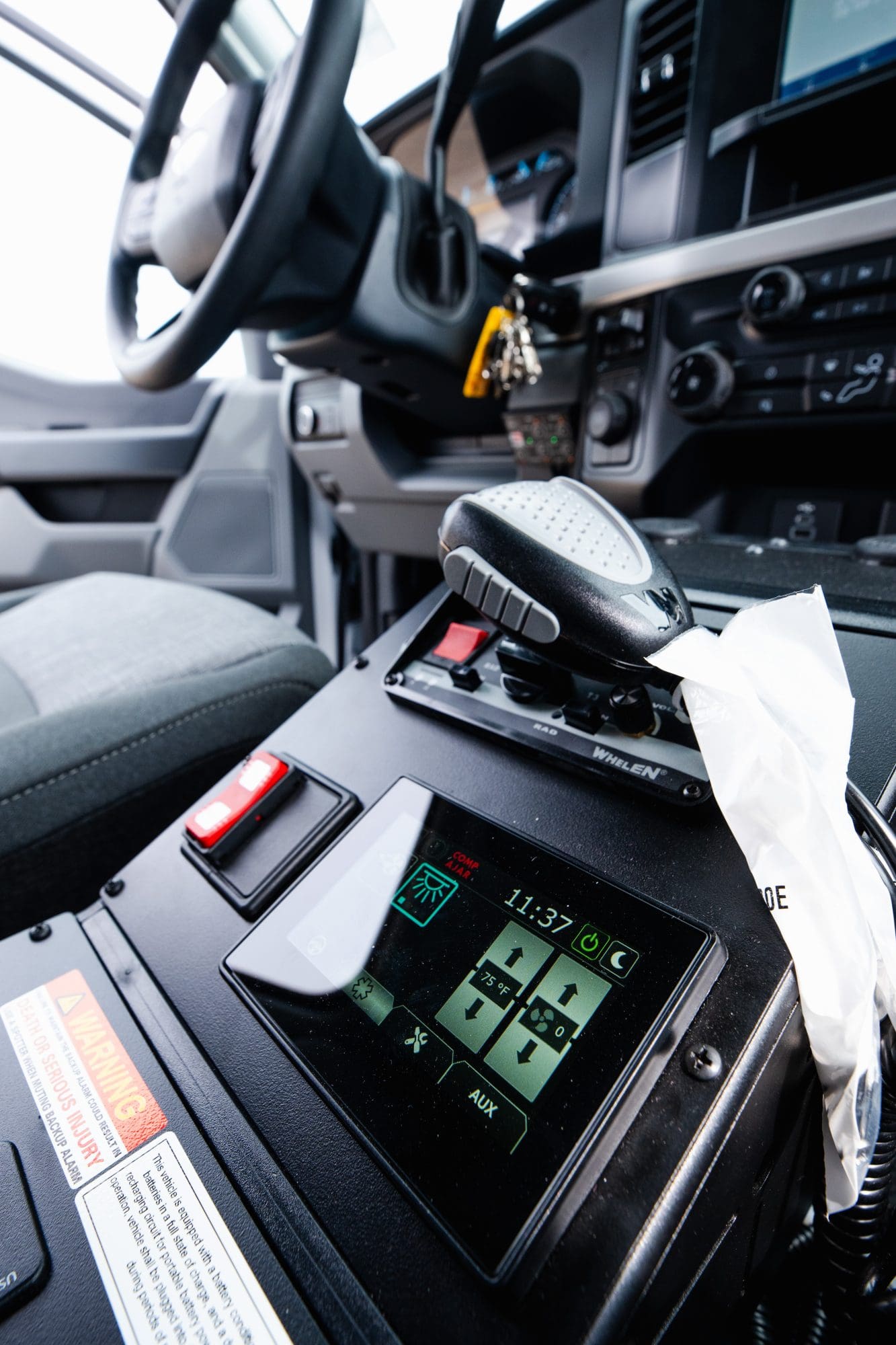

Siren

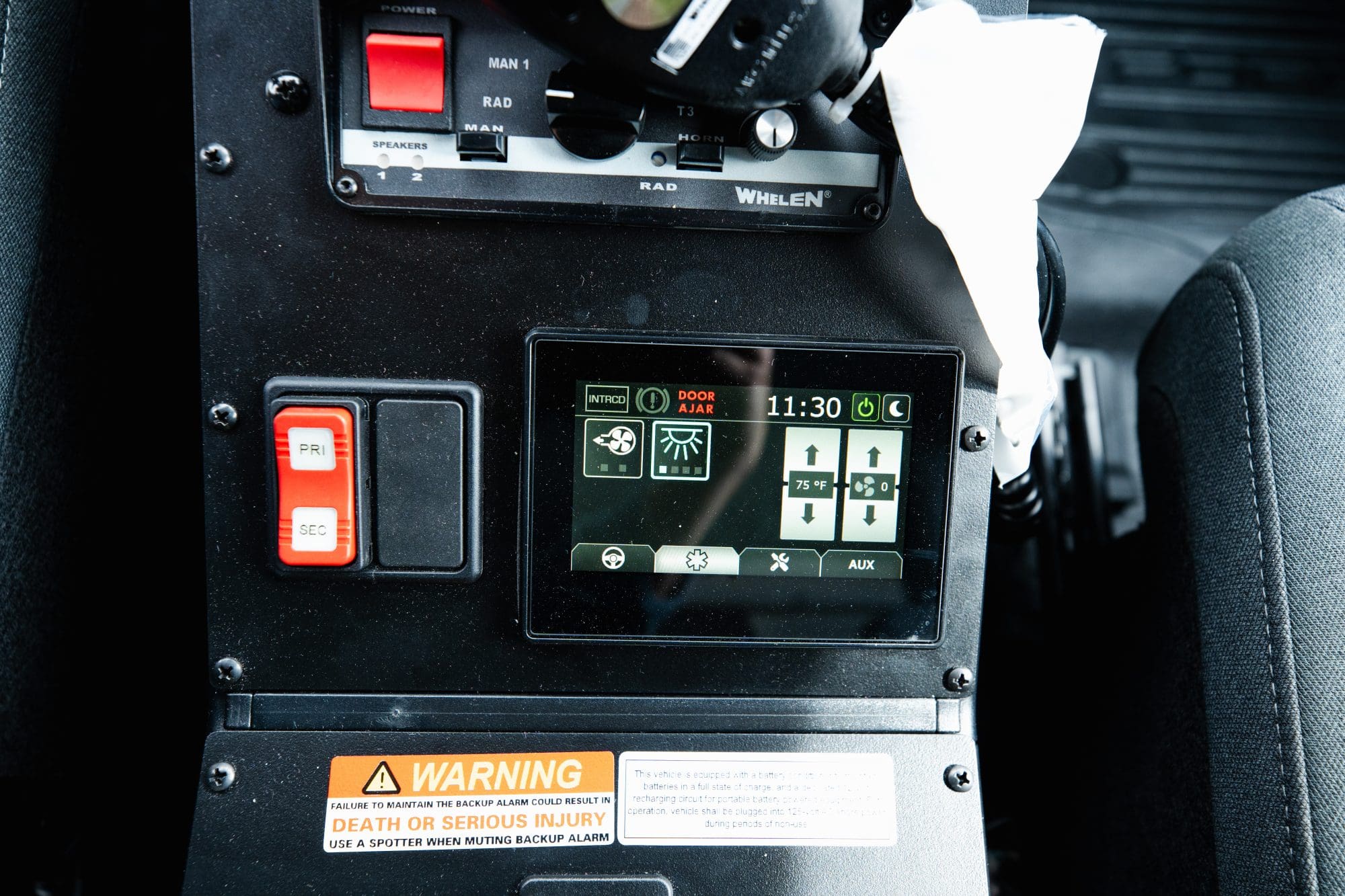

Touchscreen Display

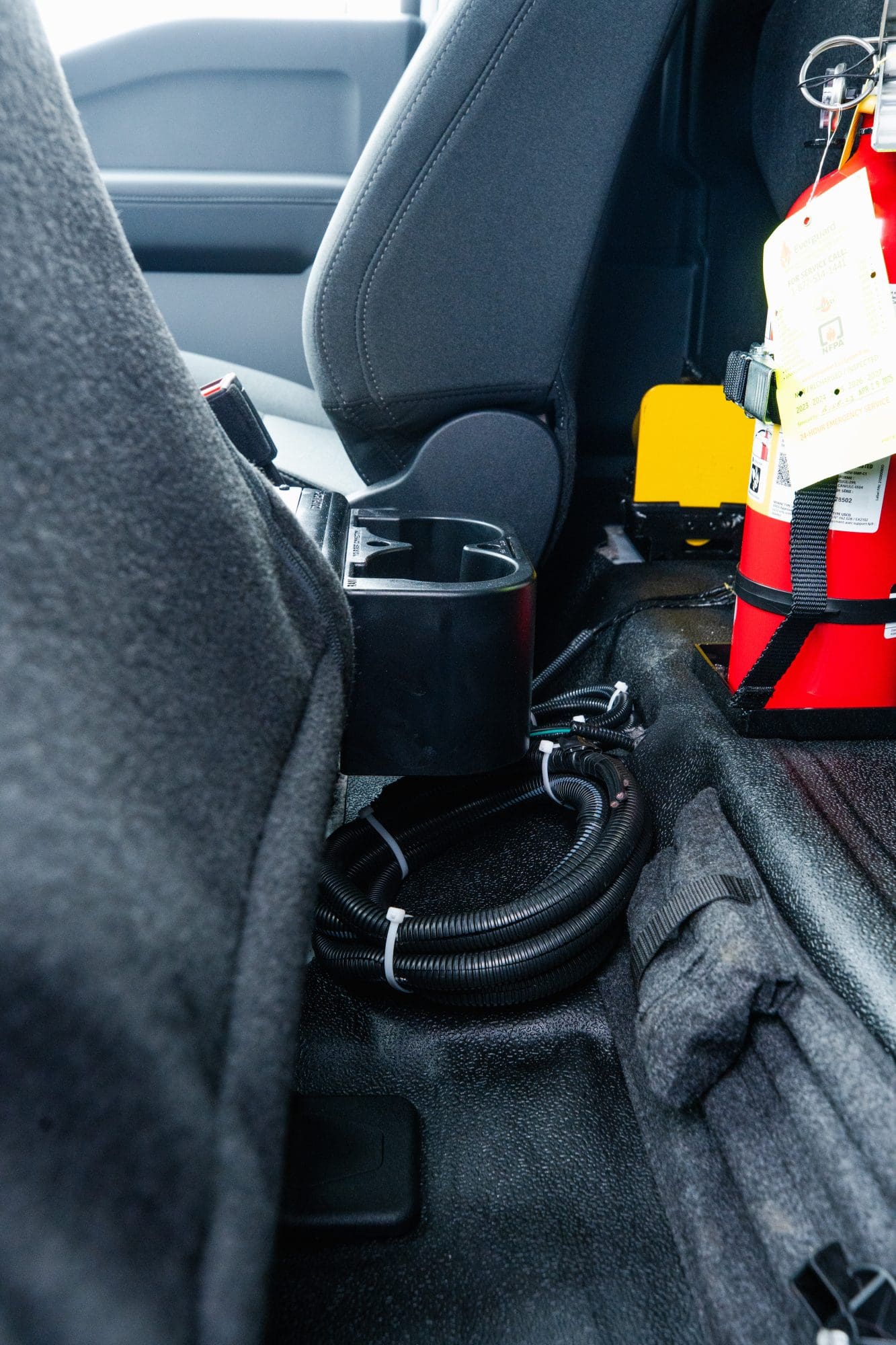

Dual cup holders
Overhead Console

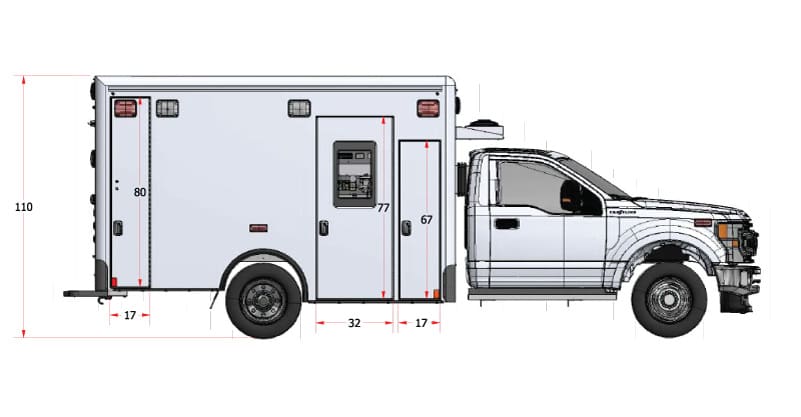

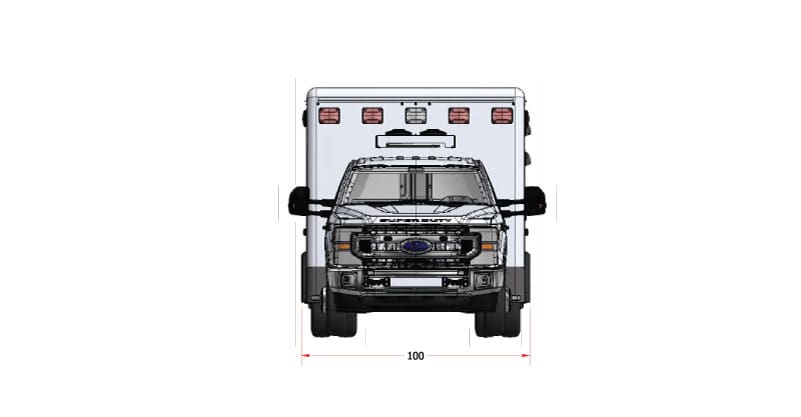

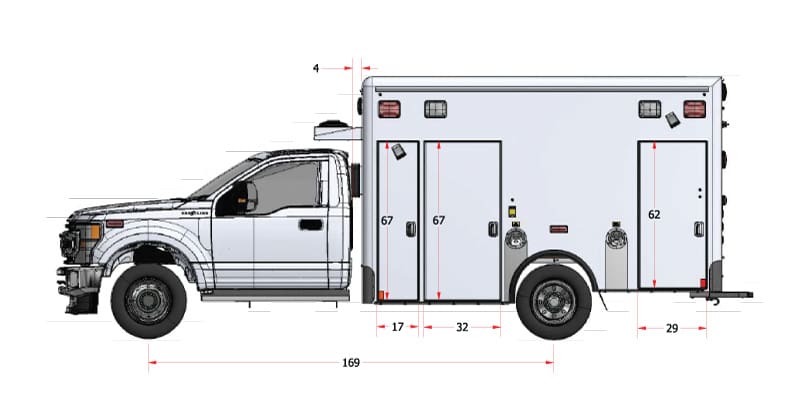

Exterior Module Configuration
Detailed Specifications by Chassis
Ford F-450
| Drive type | 4 x 4 |
|---|---|
| Engine | 7.3L DECVT NA PFI V8 |
| Fuel | Gas |
| Transmission | Automatic |
| Wheelbase | 169” (4293 mm) |
| Payload capacity | 3080 lbs |
| GVWR | 16, 500 lbs (7,484.2 kg) |
| Module length | 150" (381 cm) |
| Module width | 96” (243.8 cm) |
| Overall height | 108” (274.3 cm) |
| Overall length | 291" (739 cm) |
| Overall width | 106"(269 cm) -113" (287 cm) (telescoping arm on mirrors) |
| Module headroom | 72” (182.9 cm) |
