MMC Multiplex Electrical System
Delivering more value with the latest technology.
Standard in every Crestline ambulance, the Multiplex Modular Connected (MMC) electrical system is designed to boost performance and provide your emergency response team with reliable technology to elevate response and rescue.
The MMC has been modernized with more standard features and enhancements for the end user. The efficient new interface offers instant access to critical components, enabling first responders greater control of their work environment.
The MMC includes more safety features, such as new emergency and working light modes, to enhance patient care. In addition, the structural system is designed with decentralized architecture, which provides additional benefits of optimized payload and reduced energy consumption.
Simplified control and streamlined performance.
Advanced Emergency Lighting Features
Emergency Flash Lights: Smooth Pattern
EMS providers can work safely at the emergency site by deploying the new smooth pattern lights. The smooth pattern gently diminishes the light intensity of emergency flashes when in park mode. The primary/secondary lights are designed to reduce vision impairment for passersby while effectively drawing attention to the scene.
Emergency Flash Lights: Day/Night Mode
Enhance overall road safety and reduce eye fatigue with day/night mode. Your crew can adjust the brightness of the emergency lighting depending on the surrounding lighting levels. This advanced system detects and adjusts emergency light intensity based on the ambulance environment. Whether daytime, nighttime, or driving through a tunnel, first responders can drive confidently, knowing that the ambulance will effectively draw attention without causing glare to other drivers.
Modernized Ambulance Controls

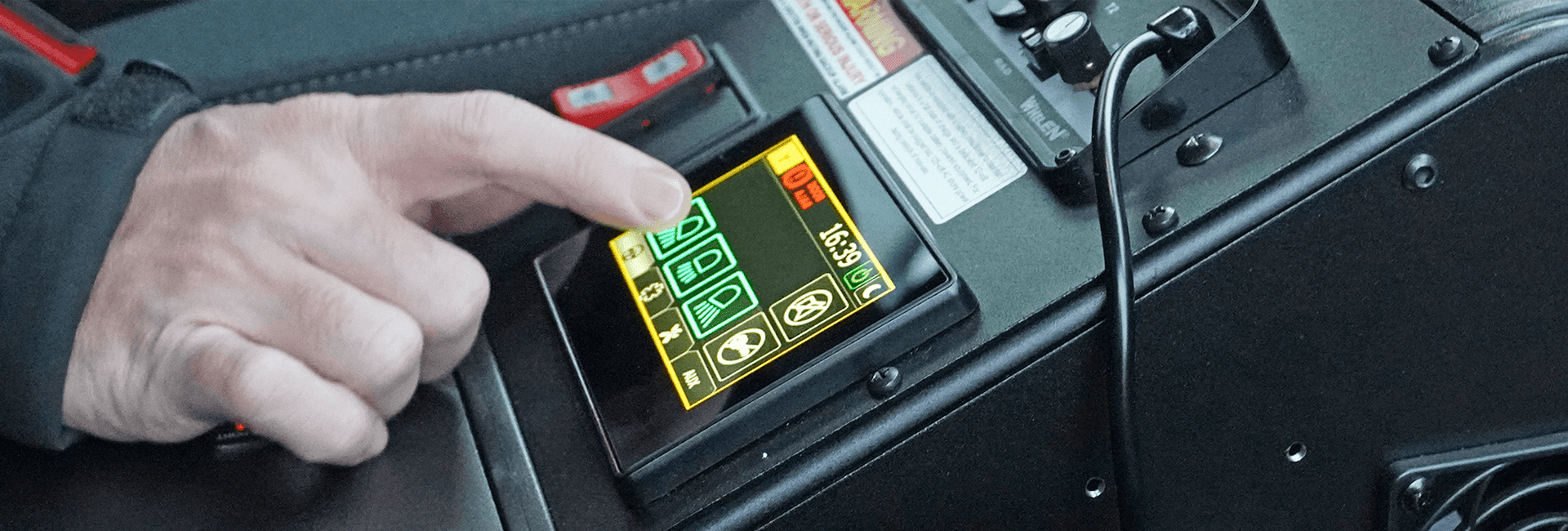

LCD Touchscreens for Critical Control
Equipped with 4.3″ panel controls in the front cab and the care module, first responders have instant access to critical components and features to optimize patient care.Highly responsive touchscreens provide visual and audio feedback and will ensure your crew is always in control.

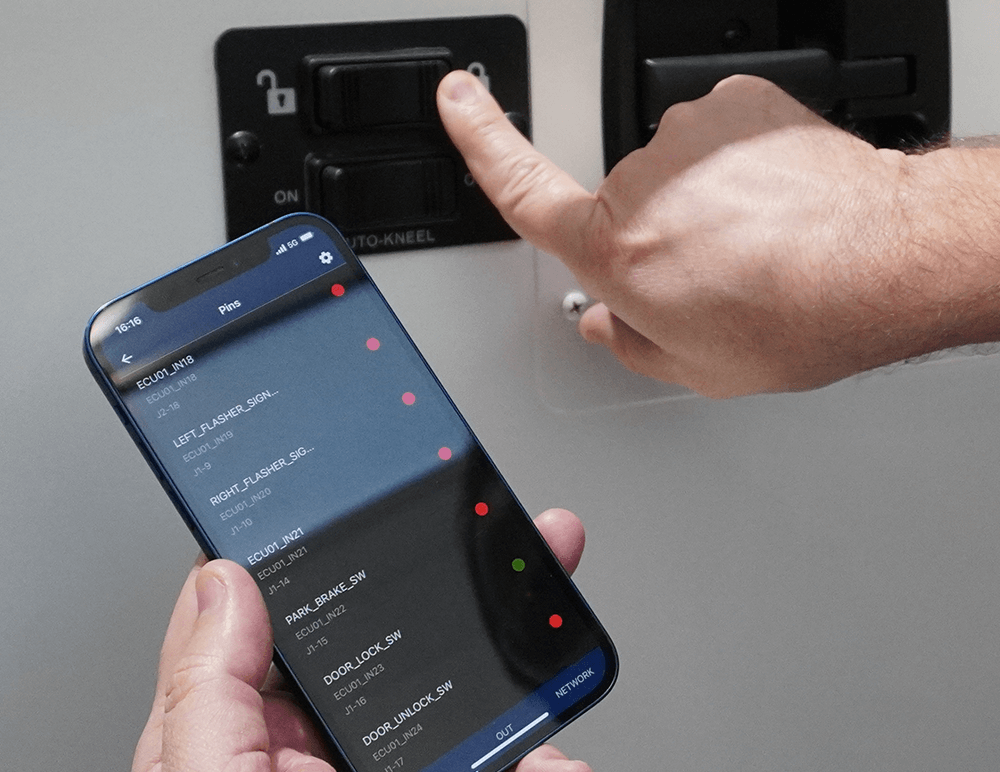

24/7 Electrical Diagnostics with Free App
Quickly access vehicle data and reduce downtime by deploying our new Bluetooth App (Vision Plex Mobile). The only tool required is a cell phone. Using the free app, you can immediately tap into our Customer Care Service Center to troubleshoot your ambulance! Our dedicated technicians are standing by, ready to assist promptly.
Battery Protection to Conserve Power
Low Power Sleep Mode
Thanks to the efficient low-consumption sleep mode, your ambulance remains primed for immediate deployment even after extended storage periods.
The low-power sleep mode enables longer unplugged storage, reducing battery draining. Peace of mind is possible, knowing your ambulance is ready for action at any time.

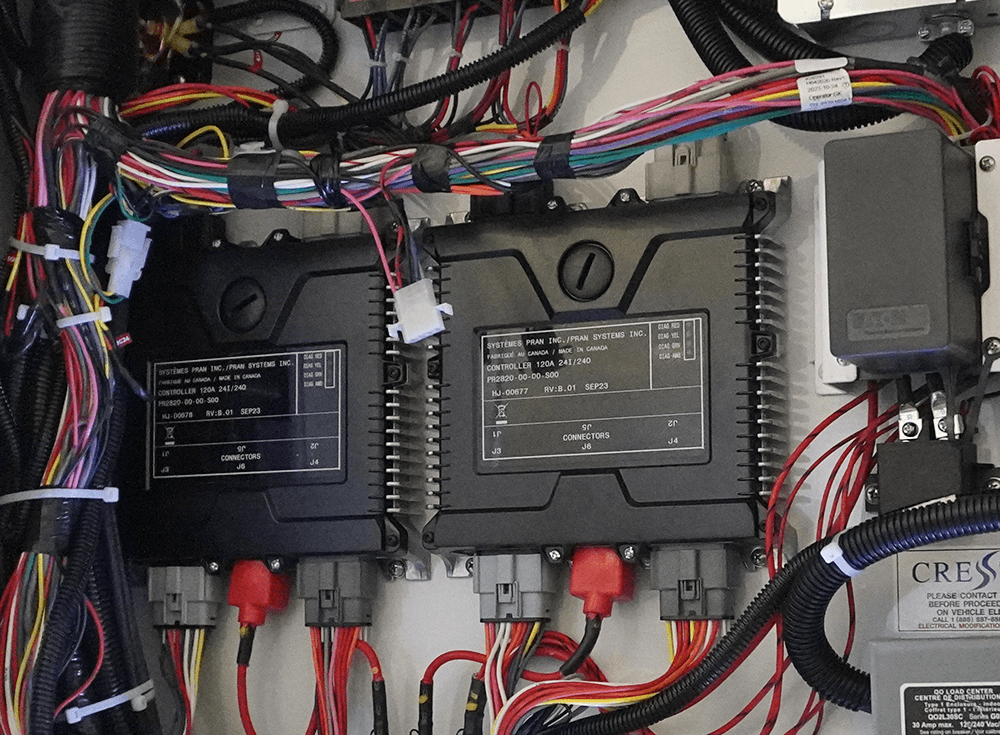

Proven Technology
Powered by Pran Systems
The MMC Multiplex is the next generation of control systems, built on trusted PRAN technology already integrated into hundreds of Crestline ambulances. Proven for reliability, this advanced system helps EMS providers maximize vehicle uptime while reducing maintenance costs.
With MMC Multiplex, Crestline continues its promise to deliver value, safety, and durability — all at an affordable price.
Your questions about the MMC Electrical System, answered.
Is the MMC Multiplex standard in all Crestline ambulances?
Yes. MMC is the new standard in all Crestline ambulances.
Is the touchscreen sensitive enough for use with gloves?
Yes. The MMC Multiplex touchscreens have been developed for EMS application. They are sensitive enough to function with two layers of gloves.
What controls remain available through switches?
In the cab, the primary and secondary light switch controls remain available.
In the module, the exhaust fan, suction, ceiling lights, and lighting brightness controls remain available.
Where are the control panels located?
The standard package includes two screens. One is located in the front cab on the driver console and another is located in the back in the module.
Can the interface be customized?
The MMC digital touchscreen allows greater flexibility. Functionalities can be added through the AUX menu by a software update, expanding the system’s capabilities to suit your needs.
What controls have been added to the back?
In addition to the usual functionalities, the module panel features additional controls such as:
- Built-in clock
- Display brightness control
- Repetitive timer alarm (stopwatch)
- Error log display
- Intention lights
- Transmission indicators
The MMC allows flexibility to add optional features directly integrated into the AUX menu.
Where is the rear clock?
The rear clock is now integrated into the MMC screen in the module. The first responder can easily track time while maintaining focus on the patient.
Where can I find the App for Bluetooth diagnostic?
The VisionPlex Mobile application is available for free on your preferred app store:
- For Android cellphones, download the app here.
- For Apple iPhones, download the app here.
What do you mean by software update?
Updating the MMC Multiplex system is now a breeze. Connect your laptop to the MMC via a standard USB port and contact Customer Care. They’ll efficiently update the system remotely, ensuring a quick and seamless process.
